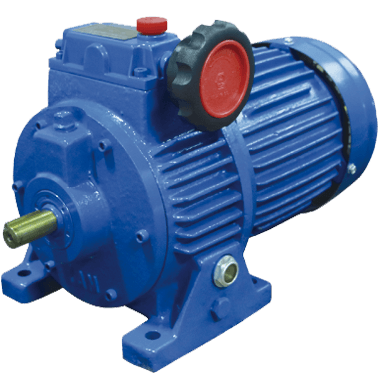

Varitron AM Speed Variator is a integrate design with high efficiency, compact size, long life span and simple structure invention. It is the most highly used speed variator in modern industrial. Its torque transmission is by using fixed-star wheel friction, where stability, abrasion resistance and toughness are the best in variator device.
Features
▌Low Speed, High torque
▌Totally Enclosed Design
▌Speed Stability Within 1%
▌Compact, Light Weight with Modular Design
▌Minimum Maintenance and Easy to Operate
▌Wide range of applications
Technical
Information
|
Power 馬力 Hp(kW) |
Frame Size 型號 |
Ratio 變速比 |
Speed Range 變速範圍 |
Revolution Speed 出力軸回轉速 rpm |
Output Torque 出力軸轉矩kg-m |
Radial Load 容許外伸負荷kg |
Axial Load 容許推力負荷 kg |
|||||||
|
With Motor 附馬達型 |
Double Shaft 雙軸型 |
50Hz |
60Hz |
50Hz |
60Hz |
Input Shaft 入力軸 |
Output Shaft 出力軸 |
Input Shaft 入力軸 |
Output Shaft 出力軸 |
|||||
|
1/4 (0.18) |
AM02 |
AVM02 |
AK02 |
AVK02 |
1：6 |
1/8.4~1/1.4 |
185~1000 |
200~1200 |
0.3~0.15 |
0.25~0.13 |
30 |
40 |
20 |
30 |
|
1/2 (0.37) |
AM05 |
AVM05 |
AK05 |
AVK05 |
1：6 |
1/8.4~1/1.4 |
185~1000 |
200~1200 |
0.6~0.3 |
0.5~0.25 |
40 |
80 |
35 |
50 |
|
1 (0.75) |
AM1 |
AVM1 |
AK1 |
AVK1 |
1：6 |
1/8.4~1/1.4 |
185~1000 |
200~1200 |
1.2~0.6 |
1~0.5 |
50 |
100 |
44 |
106 |
|
2 (1.5) |
AM2 |
AVM2 |
AK2 |
AVK2 |
1：6 |
1/8.4~1/1.4 |
185~1000 |
200~1200 |
2.4~1.2 |
2~1 |
75 |
130 |
82 |
130 |
|
3 (2.2) |
AM3 |
AVM3 |
AK3 |
AVK3 |
1：6 |
1/8.4~1/1.4 |
185~1000 |
200~1200 |
3.6~1.8 |
3~1.5 |
150 |
190 |
140 |
170 |
|
5 (3.7) |
AM5 |
AVM5 |
AK5 |
AVK5 |
1：6 |
1/8.4~1/1.4 |
185~1000 |
200~1200 |
6~3 |
5~2.5 |
150 |
190 |
140 |
170 |
|
7.5 (5.5) |
AM8 |
AVM8 |
AK8 |
AVK8 |
1：6 |
1/8.4~1/1.4 |
185~1000 |
200~1200 |
9~4.5 |
7.5~3.8 |
175 |
220 |
150 |
200 |
|
10 (7.5) |
AM10 |
AVM10 |
AK10 |
AVK10 |
1：6 |
1/8.4~1/1.4 |
185~1000 |
200~1200 |
12~6 |
10~5 |
175 |
220 |
150 |
200 |
Designation
|
j |
Model型式 |
SR:Actuators with Input Shaft SRM:Actuators with IEC Adaptor |
升降機附入力軸 升降機附入力法蘭 |
|
k |
Frame Size 型號 |
1T,2T,3T,5T,10T,15T,20T,30T,50T,100T |
|
|
l |
Ratio速比 |
Refer toPerformances Table Page 220請參考性能表第220頁 |
|
|
m |
Direction 軸向 |
W,R,R1,L,L1 |
|
|
n |
Motor Horse Power馬力 |
05, 1, 2, 3, 5, 10 (For model SRM, 搭配SRM型式使用) |
|
|
o |
Installing 安裝方式 |
A,B,C,D,E,F Refer to page 222.參考第222頁 |
|
|
p |
Screw End 螺桿型式 |
N: No End (full rod) S: Threaded End H: Clevis End R: Rod End T: Top Plate |
全牙式 螺牙式 栓孔式 平頭式 頂板式 |
|
q |
Length長度 |
Customized according to customer requirement. 依客戶需求訂製 |
|
※Dimensions and specifications in the catalog are subject to change without notice. 尺寸及規格若有變動，將不另行通知。
Dimensions
|
Frame Size 型號 |
A |
B |
C |
E |
F |
G |
H |
I |
J |
K |
L |
M |
N |
O |
O1 |
P |
P1 |
Q |
Q1 |
R |
S |
S1 |
U |
U1 |
V |
W |
X |
Z |
kg |
|
AM02/AK02 |
187 |
100 |
71 |
110 |
105 |
12 |
188 |
170 |
25 |
25 |
240 |
140 |
125 |
M5 |
M5 |
5 |
5 |
30 |
25 |
48 |
14 |
14 |
5 |
5 |
99 |
191 |
121 |
9 |
18 |
|
AM05/AK05 |
210 |
115 |
90 |
130 |
105 |
15 |
218 |
190 |
32 |
30 |
246 |
160 |
135 |
M5 |
M5 |
5 |
5 |
30 |
30 |
60 |
14 |
14 |
5 |
5 |
110 |
229 |
149 |
10 |
26 |
|
AM1/AK1 |
227 |
137 |
106 |
160 |
125 |
15 |
249 |
226 |
40 |
40 |
285 |
190 |
150 |
M6 |
M6 |
6 |
6 |
40 |
30 |
75 |
19 |
19 |
6 |
6 |
129 |
266 |
166 |
12 |
36 |
|
AM2/AK2 |
288 |
173 |
125 |
180 |
140 |
18 |
313 |
246 |
50 |
45 |
300 |
230 |
165 |
M6 |
M6 |
8 |
8 |
50 |
40 |
80 |
24 |
24 |
8 |
8 |
157 |
310 |
190 |
12 |
59 |
|
AM3/AK3 |
315 |
208 |
150 |
245 |
230 |
20 |
378 |
298 |
55 |
50 |
366 |
300 |
270 |
M8 |
M8 |
8 |
8 |
60 |
50 |
85 |
28 |
28 |
8 |
8 |
187 |
370 |
220 |
14 |
87 |
|
AM5/AK5 |
355 |
208 |
150 |
245 |
230 |
20 |
378 |
298 |
55 |
50 |
396 |
300 |
270 |
M8 |
M8 |
8 |
8 |
60 |
50 |
85 |
28 |
28 |
8 |
8 |
187 |
370 |
220 |
14 |
103 |
|
AM8/AK8 |
405 |
249 |
200 |
315 |
250 |
30 |
475 |
389 |
70 |
80 |
540 |
365 |
290 |
M10 |
M10 |
10 |
10 |
70 |
60 |
90 |
38 |
38 |
10 |
10 |
211 |
435 |
250 |
18 |
230 |
|
AM10/AK10 |
445 |
249 |
200 |
315 |
250 |
30 |
475 |
389 |
70 |
80 |
540 |
365 |
290 |
M10 |
M10 |
10 |
10 |
70 |
60 |
90 |
38 |
38 |
10 |
10 |
211 |
435 |
250 |
18 |
238 |
|
※Larger model available, contact Varitron® or your sales personal.如需更大型號，請洽中國變速。 |
|||||||||||||||||||||||||||||
