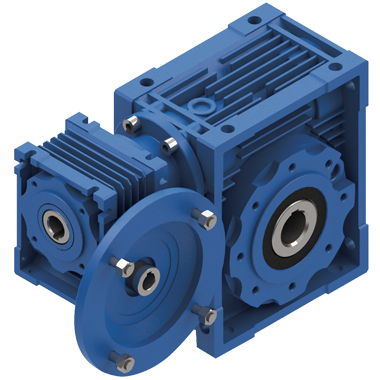

Varitron-Double Stages NMRV-NMRV Worm Gearbox

Technical

Information

Designation

j	Worm Gear Model	NMRV:Worm Gear With IEC Motor Adaptor NMRV-NMRV: Double Stage Worm Gear With IEC Motor Adaptor NRV: Worm Gear With Input Shaft NRV-NMRV: Double Stage Worm Gear With Input Shaft PC-NMRV: Helical - Worm Gear With IEC Motor Adaptor
k	Frame Size	025,030,040,050,063,075,090,110,130,150 Refer to Performances Table onPage 163~166.
l	Ratio	5,7.5,10,15,20,25,30,40,50,60,80,100,… Refer toSpecifications Table Page162~166.
m	Double Input Shaft (Option)	Empty if non VS			Refer to page 169
n	Input Motor Flange PAM	Refer to Disposition and Combinations Table (NMRV).
o	Output Flange (Option)	FA:FA Flange FB:FB Flange FC:FC Flange	FD:FD Flange FE:FE Flange TA:Torque Arm OC:Output Cover	Direction (1) (Standard) (2)	Refer to page 172
p	Output Shaft (Option)	AS:Single Output Shaft AB:Double Output Shaft		(1)(Standard) (2)	Refer to page 173
q	Operation Direction	NRV,NMRV,NMRV-PC: B3 (Standard),B6,B7,B8,V5,V6 NMRV-NMRV,NRV-NMRV: AS1 (Standard),AS2,BS1,BS2,VS1,VS2,PS1,PS2 Refer to page 167.

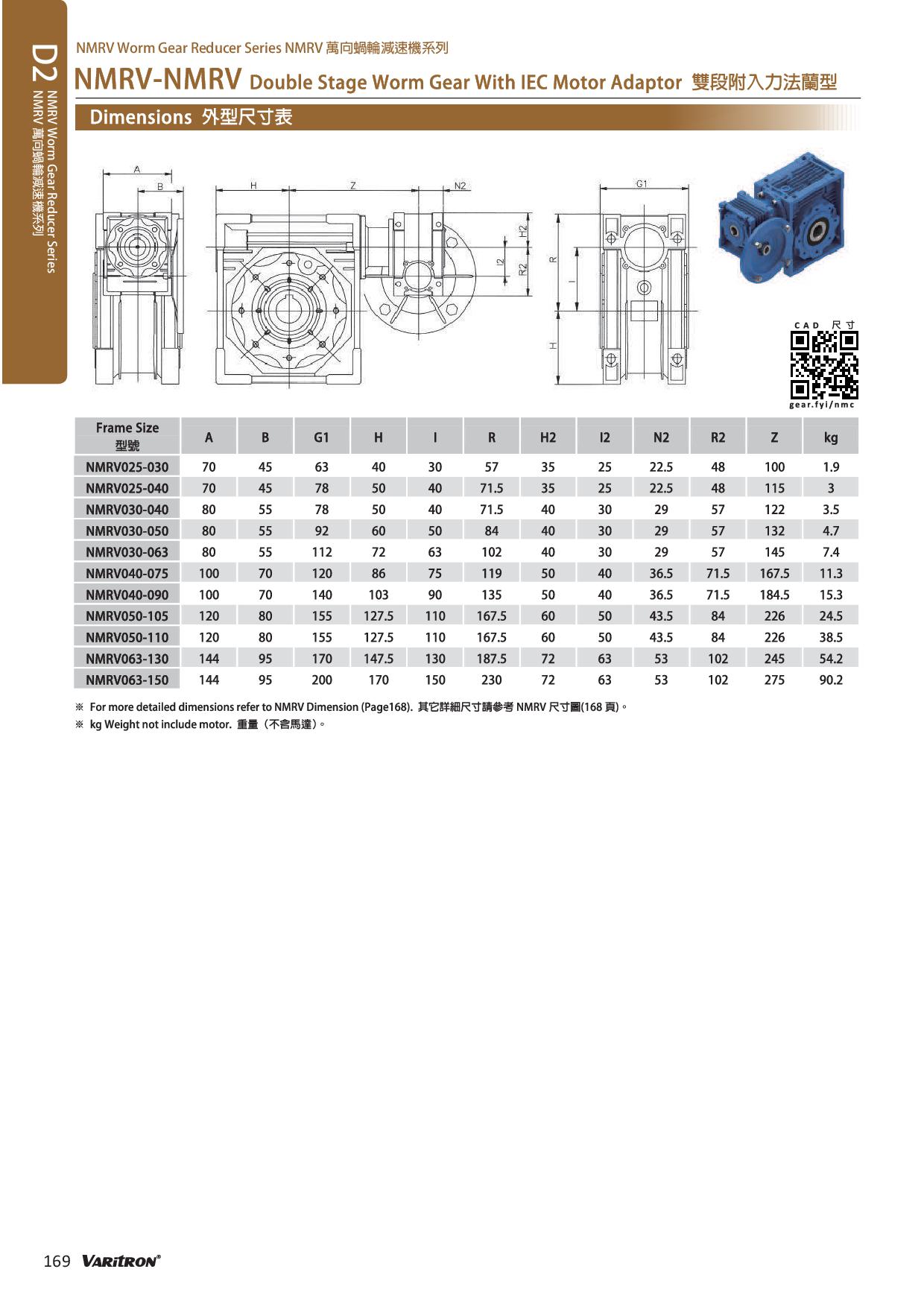

Dimensions

Applications

-Conveying

-Material Handling

-Processing

-Packaging

-Winches

-AGV

-and more…

Don’t be confused by other gearboxes that looks the same. It’s what’s inside that counts. You can rely on the Varitron design to meet your right angle power transmission needs.
