Varitron-AMV-Helical-Gear-Motor-Reducers

Features

Variton AMV Helical Gear Motor Reducers series design base on JIS standard, with high torque, silence operation , high efficiency, and long service life advantage. Designed to offer maximum reliability even in the harshest operating conditions, the Helical Gear Reducer product series guarantees complete versatility and is suitable for applications that require high radial loads.

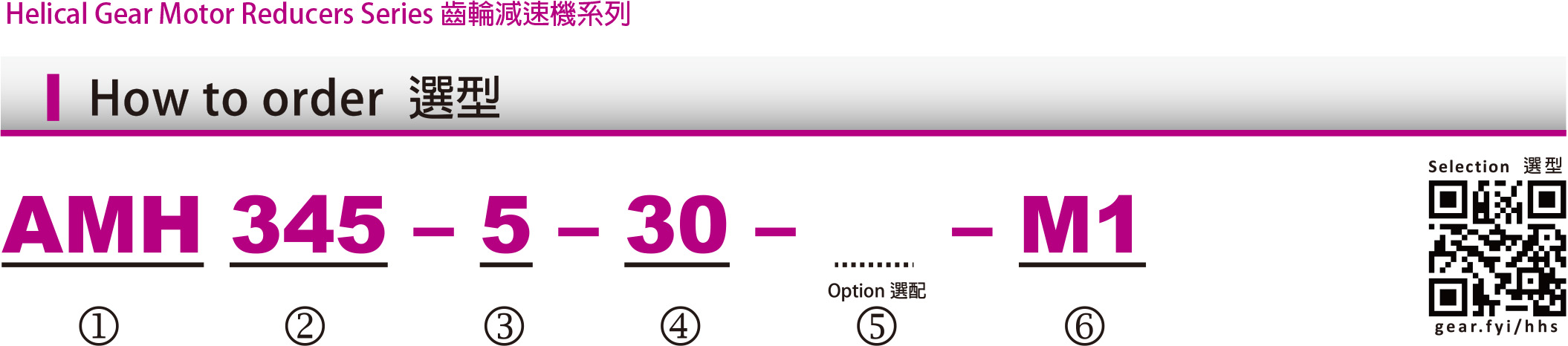

Designation

j	Model型式	AMH:FootMount Helical Gearmotor ADH:FootMount Helical Gearwith Input Shaft AMV:Flange Mount Helical Gearmotor ADV:Flange MountHelical Gearwith Input Shaft		腳座型齒輪減速馬達腳座型齒輪減速機附入力軸法蘭型齒輪減速馬達法蘭型齒輪減速機附入力軸
k	Frame Size 型號	225,230,240,250,260,270,325,330,…Refer to each model. 請參考各形式頁面
l	Motor Horse Power 馬力 (HP)	02,05,1,2,3,5,7.5,10,15,20,30,40,50,…
m	Ratio減速比	4,5,10,15,20,25, … Refer to each model. 請參考各形式頁面
n	Suffix特殊 (Option選配)	Empty if non 無記號: 無特殊 SP: Single Phrase Motor 單相馬達 SM: Smart monitoring 智能監控 B: With Brake 有剎車 AVM: Speed Variator 無段變速機 W: Outdoor 戶外	DC: DC motor直流馬達 AV: Inverter Motor 變頻馬達 S: Special 特殊 EP: IE3 Premium Efficiency IE3超高效率馬達
o	Operation Direction 使用方向	M1,M2,M3,… Refer to Page 137. 參考第137頁

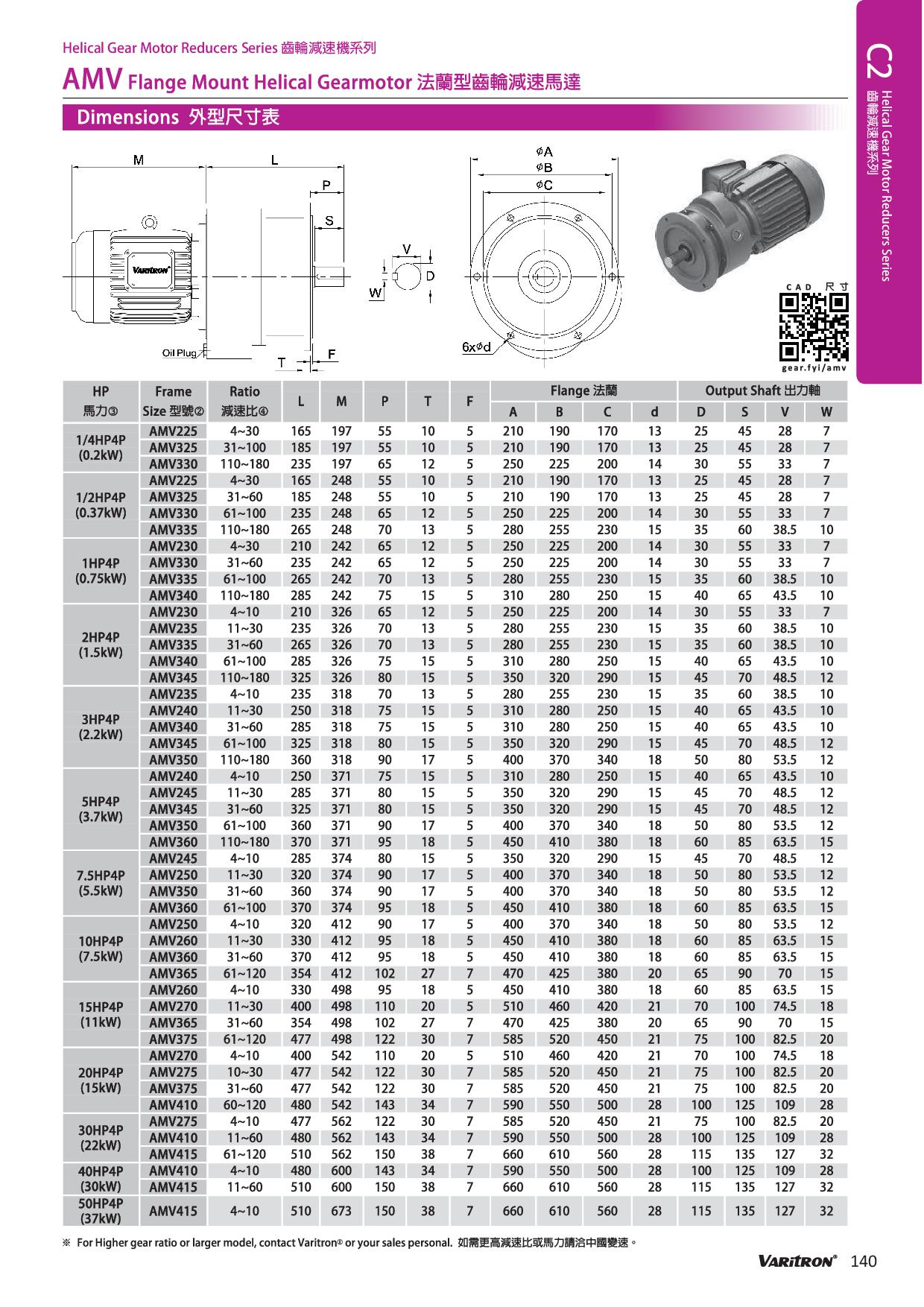

Dimensions

Downloads
